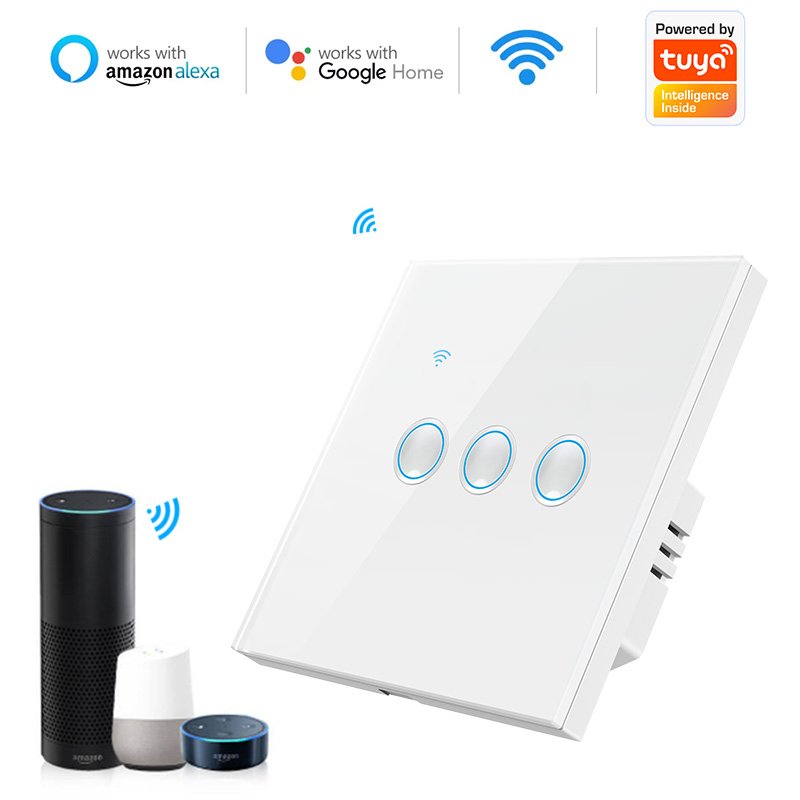

DS-10B1WL-1 is a 1-4 Gangs WiFi Touch Switch of relay type, supporting installation with or without neutral wire for EU, UK and CN standard 86-type wall boxes. Rated at 100-240VAC, this tempered glass touch wall switch works with Tuya and Smart Life APP, and supports multi voice assistants including Amazon Alexa, Google Assistant, Yandex Alice and SmartThings. Built with practical functions such as cycle timer, momentary switch, countdown, backlight and power-off memory. It is IP20 indoor smart lighting solution for residential renovation and smart home projects.

Key Features of DS-10B1WL WiFi Touch Switch

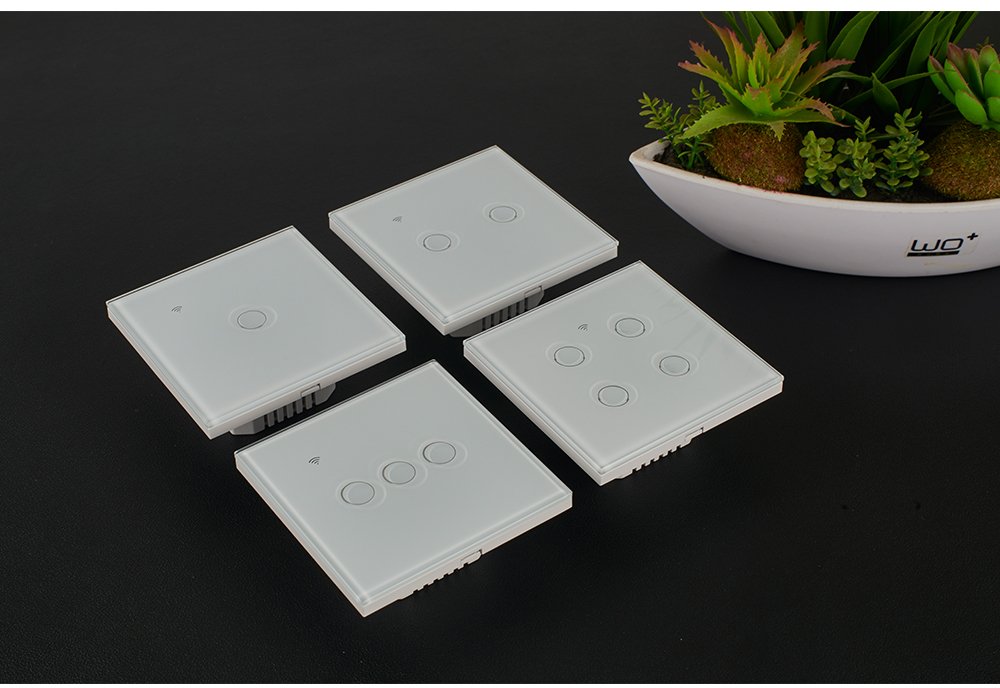

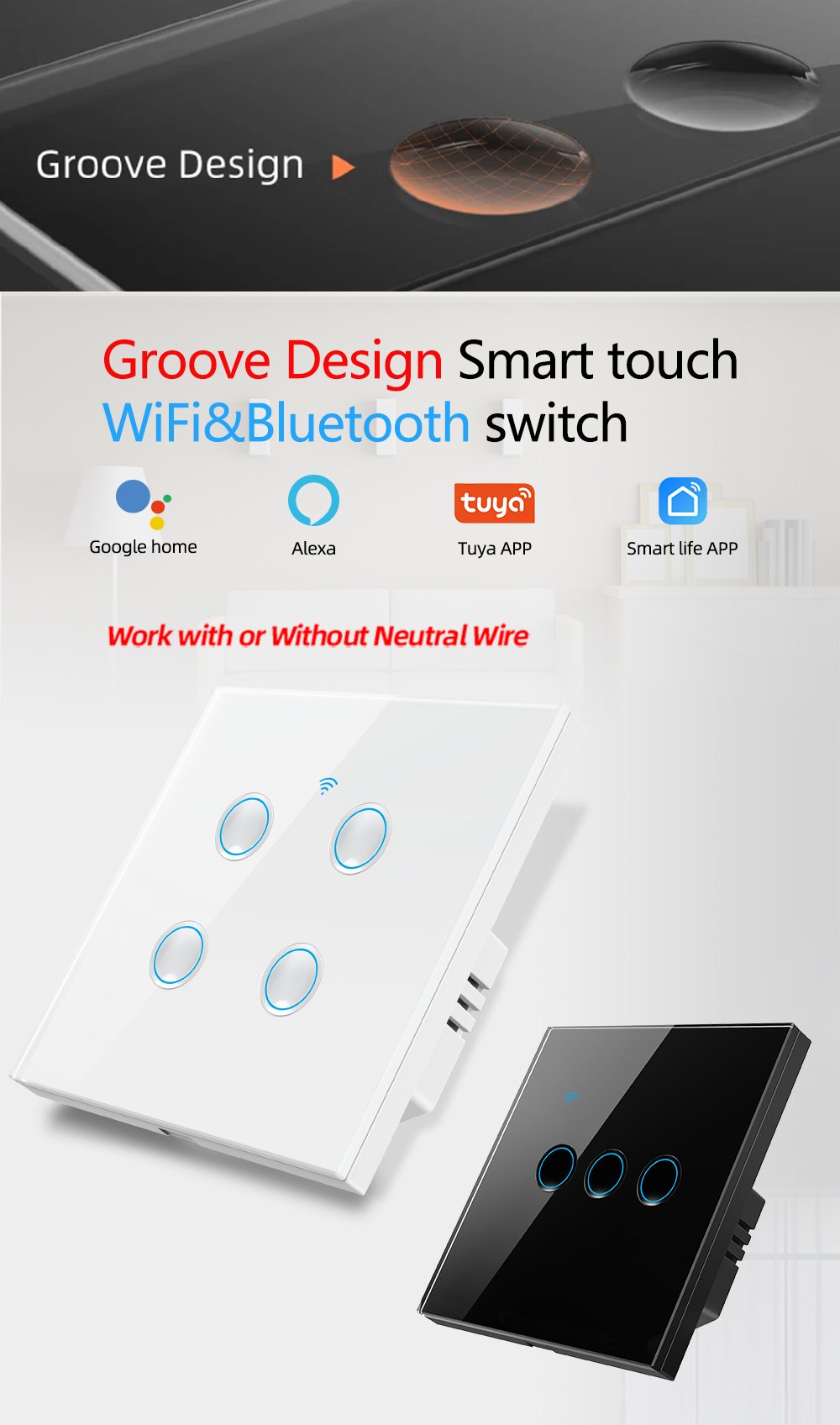

This relay-type 1 gang WiFi touch switch adopts premium tempered glass touch panel, available in white and black colors.
✅ Dual wiring support: works with neutral wire OR single live wire (no neutral wire)

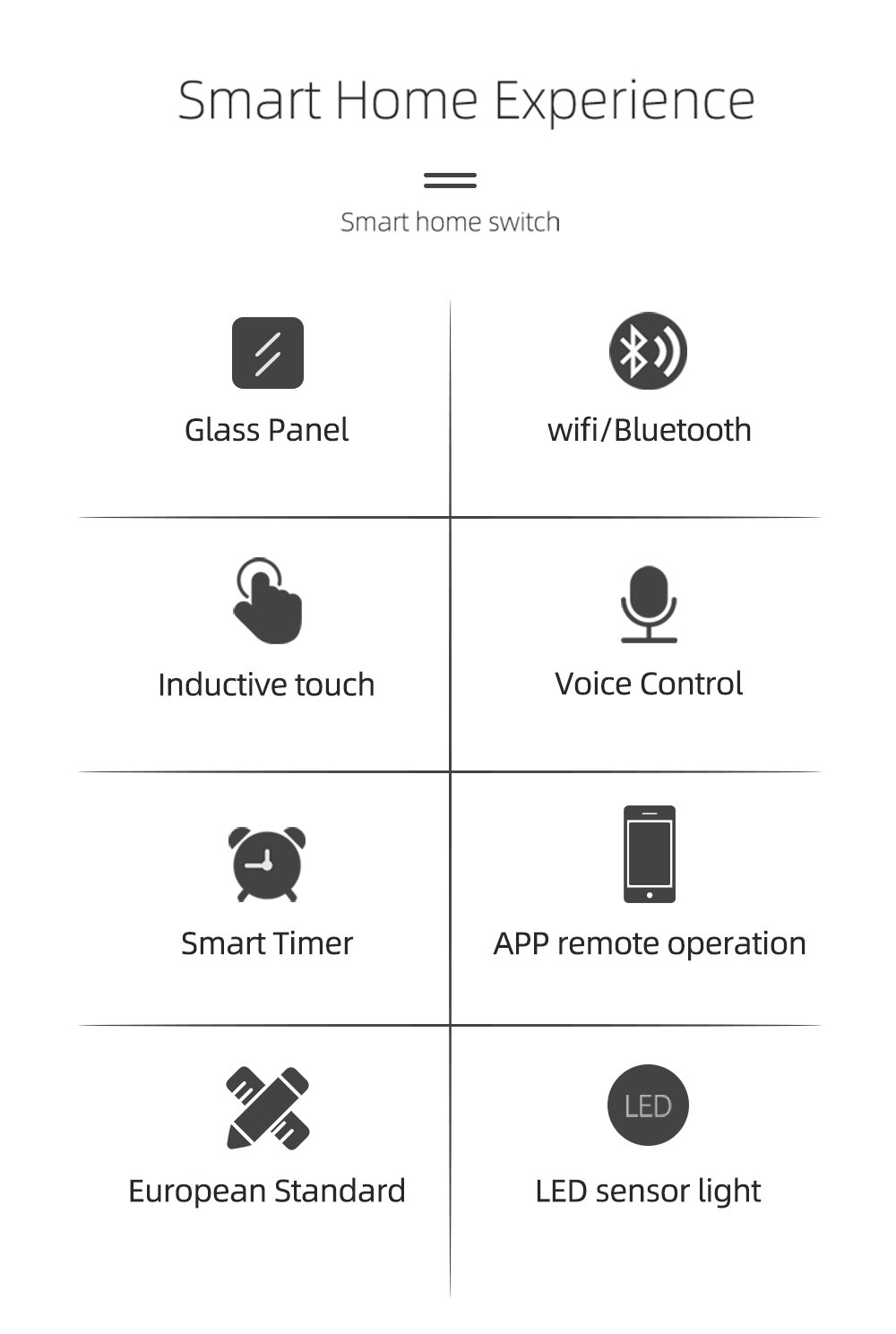

✅ Multiple built-in smart functions: cycle timer, momentary switch, countdown timer, backlight indicator and power-off memory
✅ Mechanical life up to 50,000 operations for long-term stable use
✅ IP20 rating for indoor wall-mounted installation
✅ 86*86mm EU standard panel size, fits EU, UK and CN back boxes

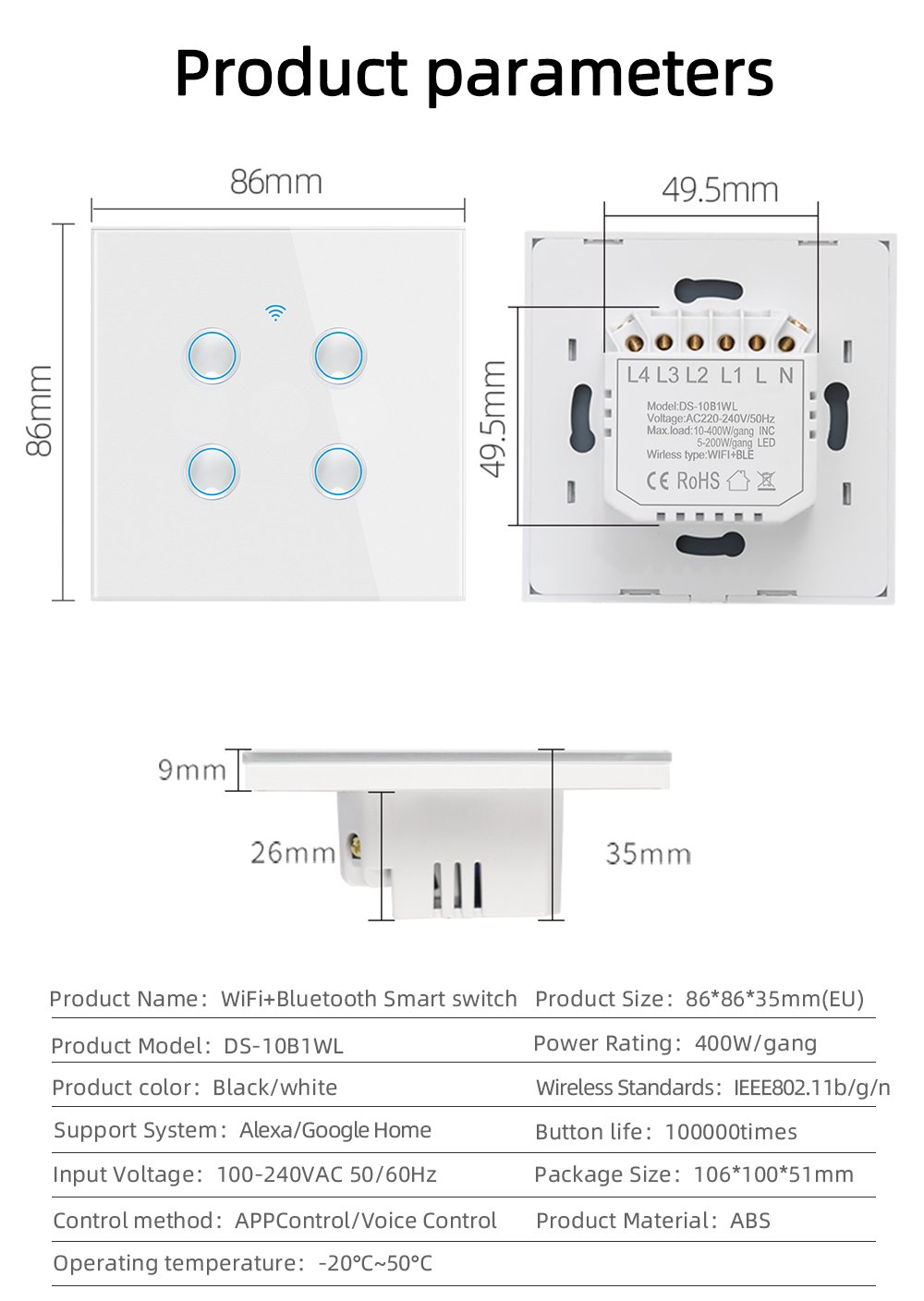

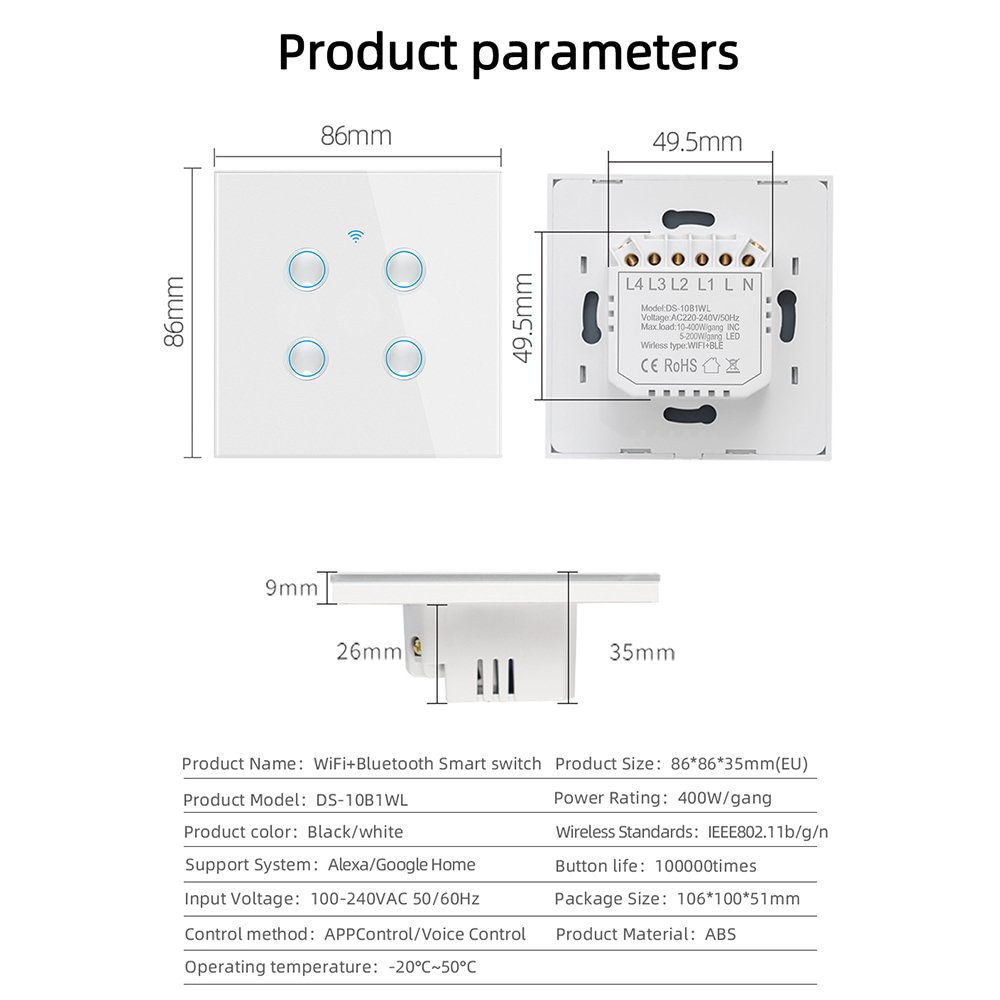

Technical Specifications

Model No.: DS-10B1WL
Type: Relay WiFi Touch Switch

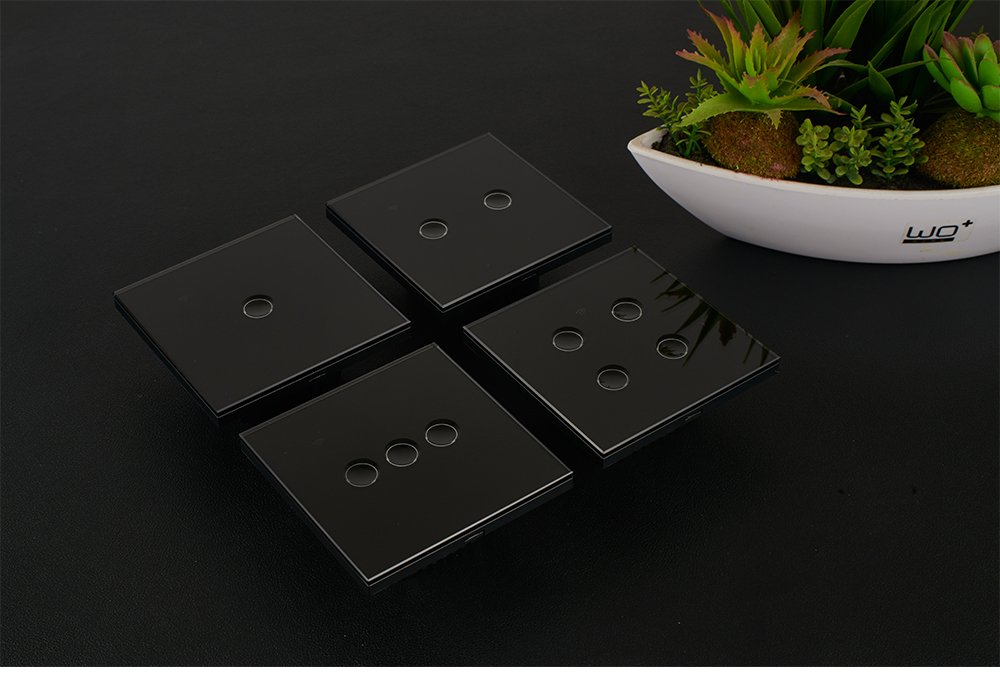

Number of Gangs: 1-4 Gangs
Installation Standard: EU / UK / CN
Rated Voltage: 100-240VAC 50/60Hz
Rated Current: 4A
Rated Power: 10-400W
Wiring Type: Neutral Wire & No-Neutral Wire
IP Rating: IP20
Mechanical Life: 50000 Times
Wireless Protocol: WiFi

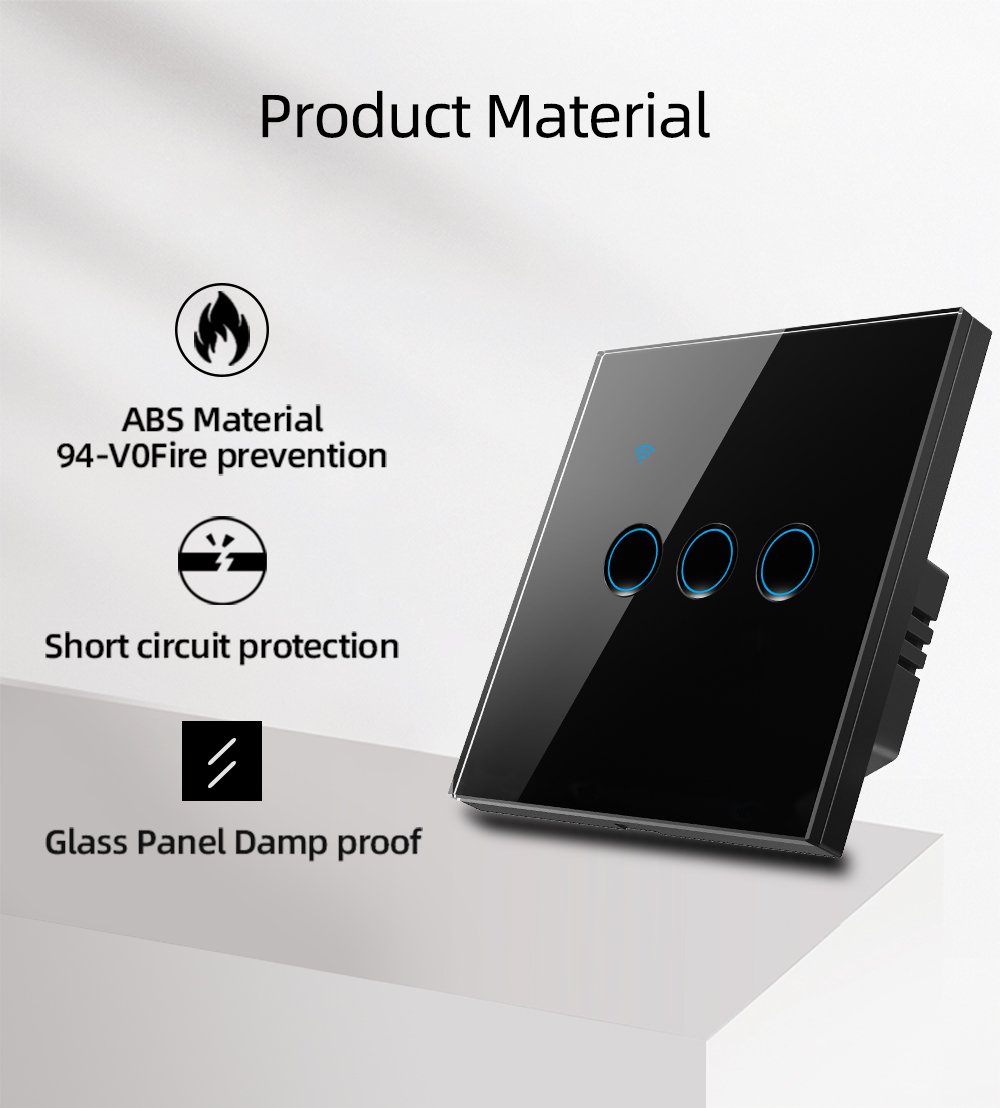

Panel Material: Tempered Glass

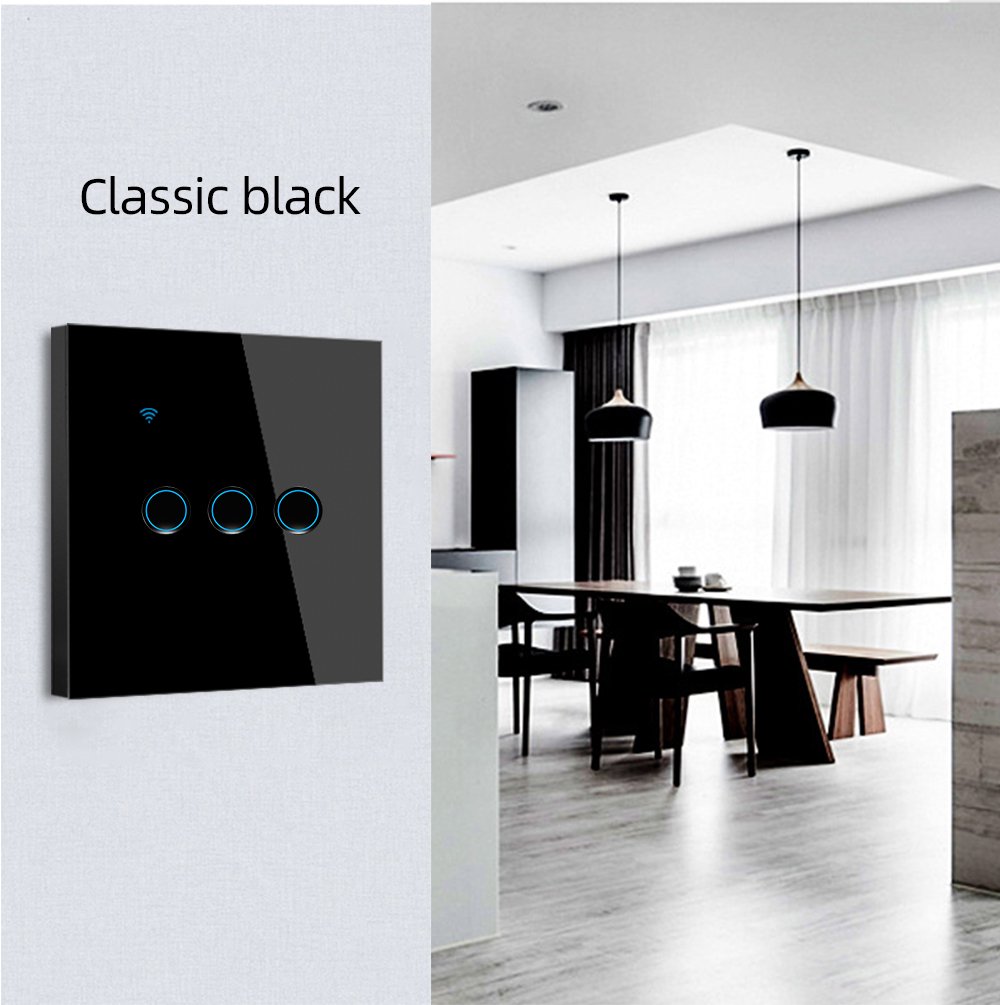

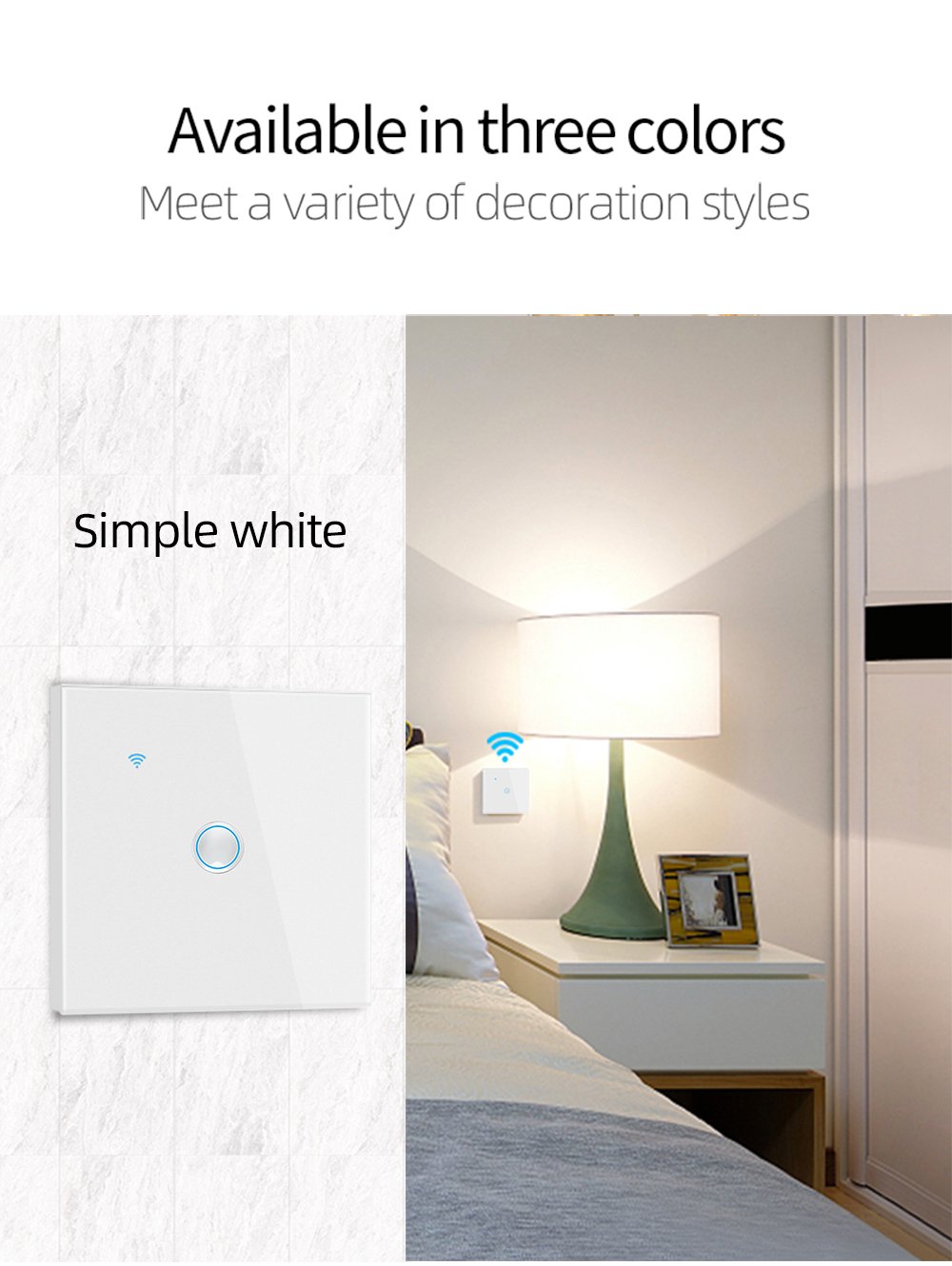

Colors: White, Black
Product Dimension: 86 * 86 * 35mm
Package Dimension: 106*100*51mm
Gross Weight: 193g

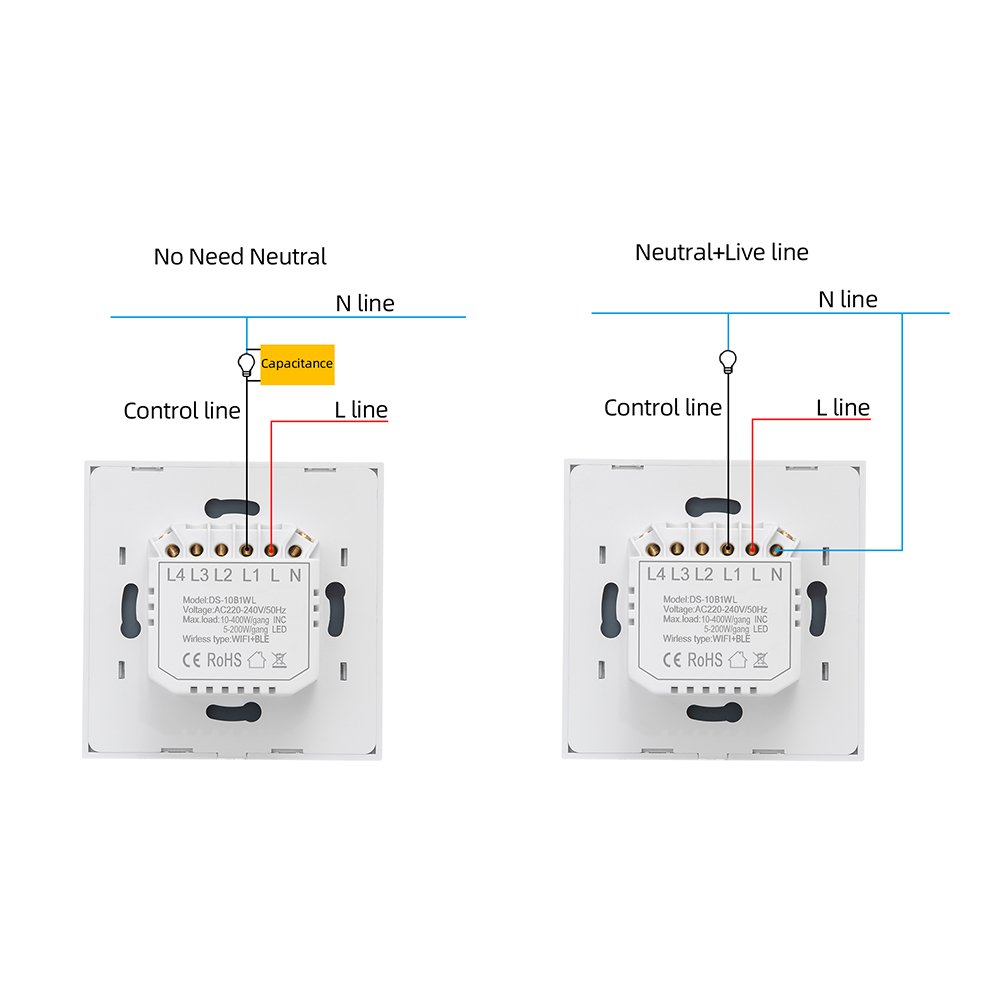

Dual Wiring Design – Neutral Wire & No-Neutral Wire

The biggest advantage of DS-10B1WL-1 is dual wiring compatibility.

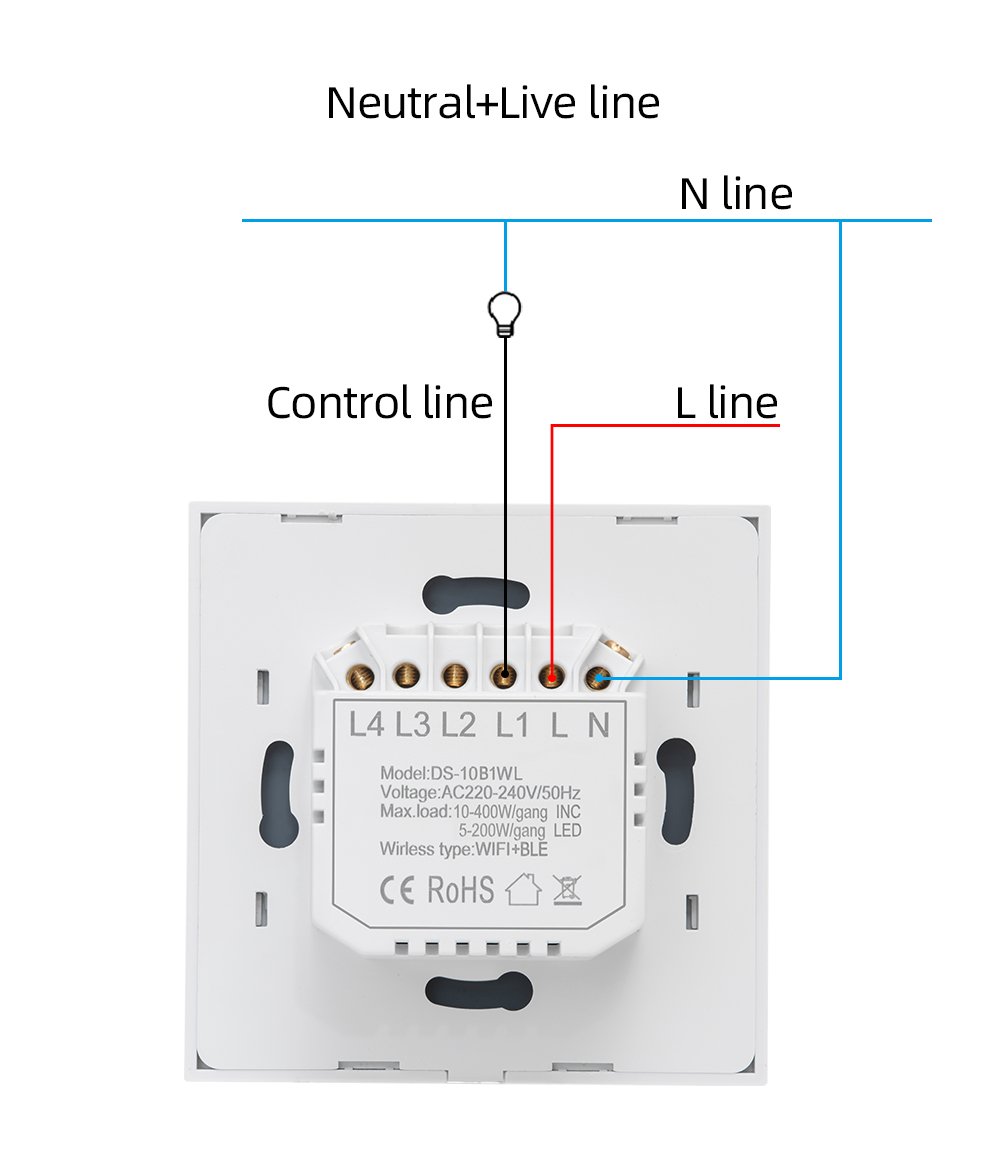

1. Neutral wire wiring: stable performance, recommended for most new smart home installation.

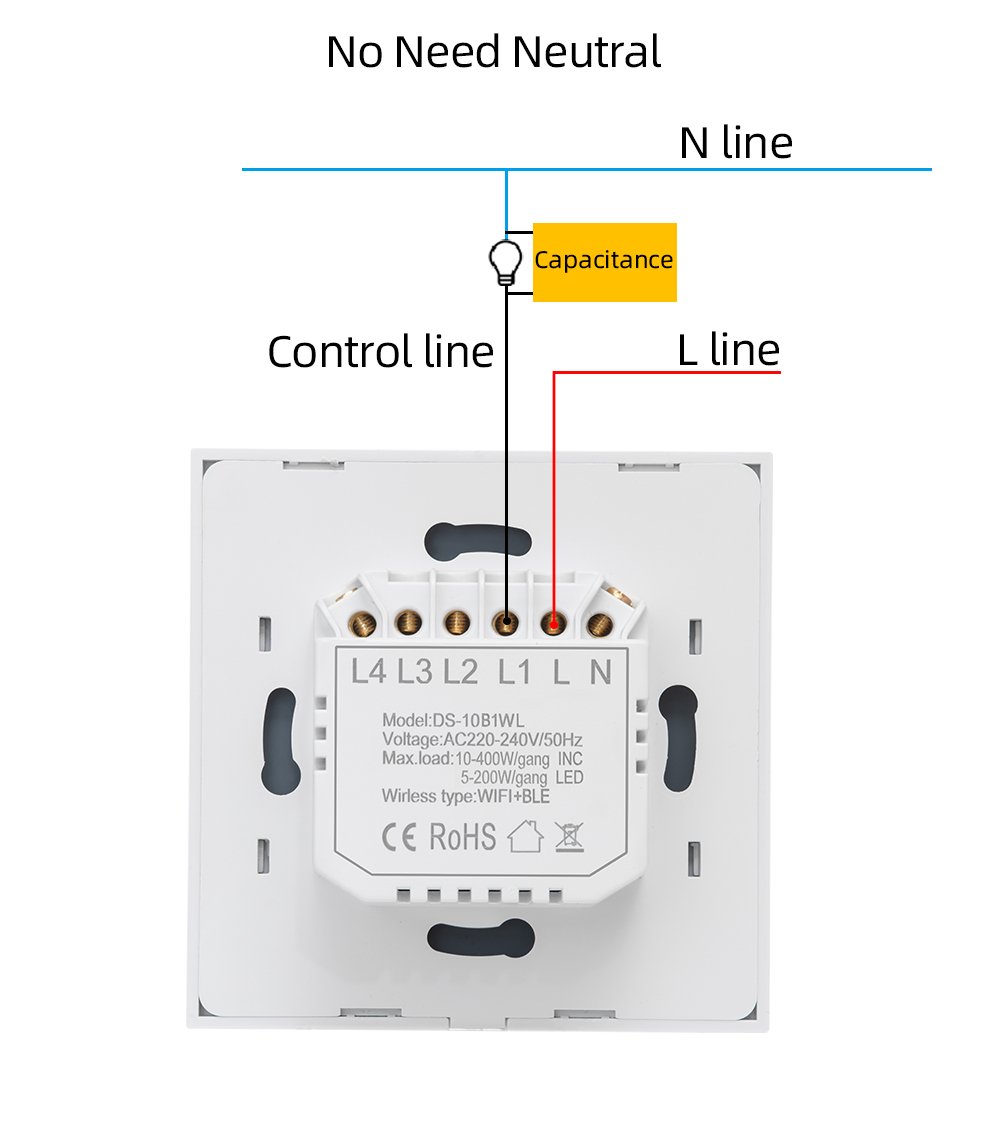

2. Single live wire (no neutral wire): suitable for old house renovation.
Remark: For single live wire wiring, please connect a capacitor in parallel at the first lamp terminal L1.

Wide Compatibility with Voice Assistants & APP

Controlled locally or remotely via Tuya & Smart Life APP.
Voice control supported: Amazon Alexa, Google Assistant, Yandex Alice, SmartThings.
You can set timer, countdown, momentary mode, power-off memory via mobile APP anywhere.

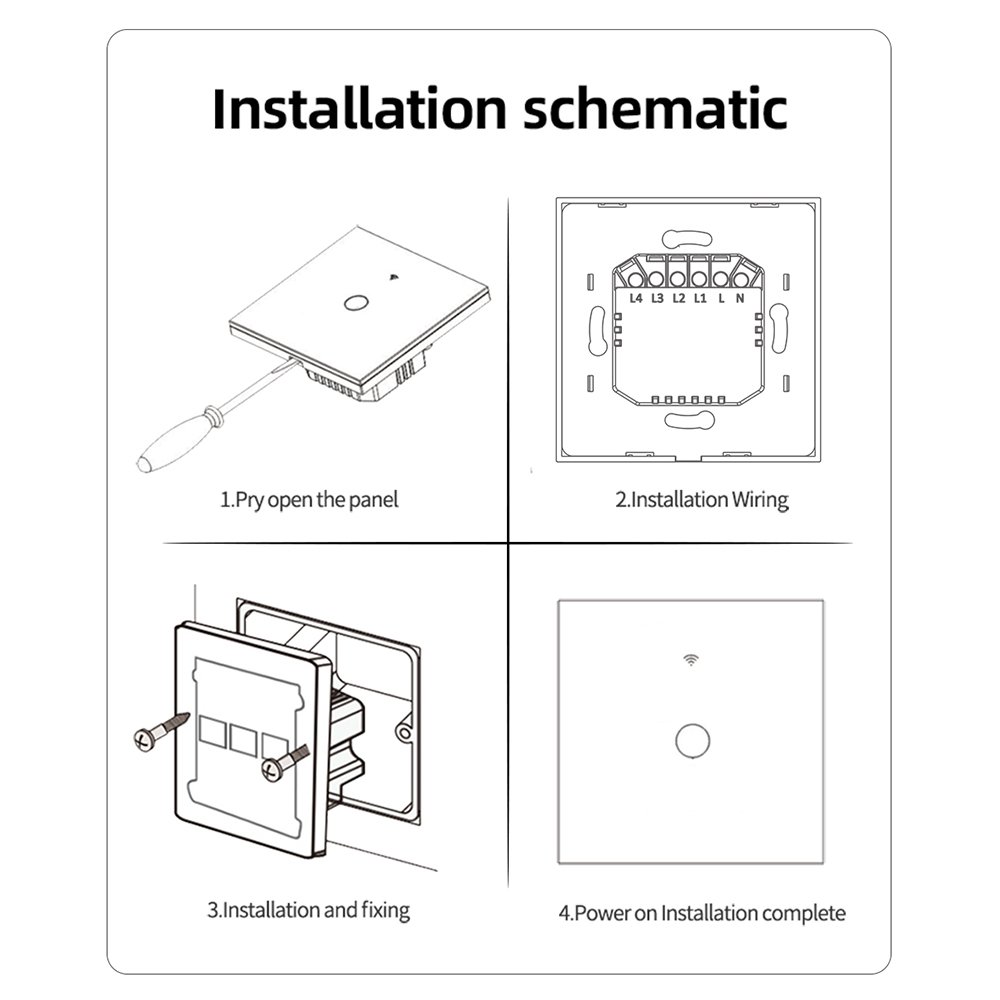

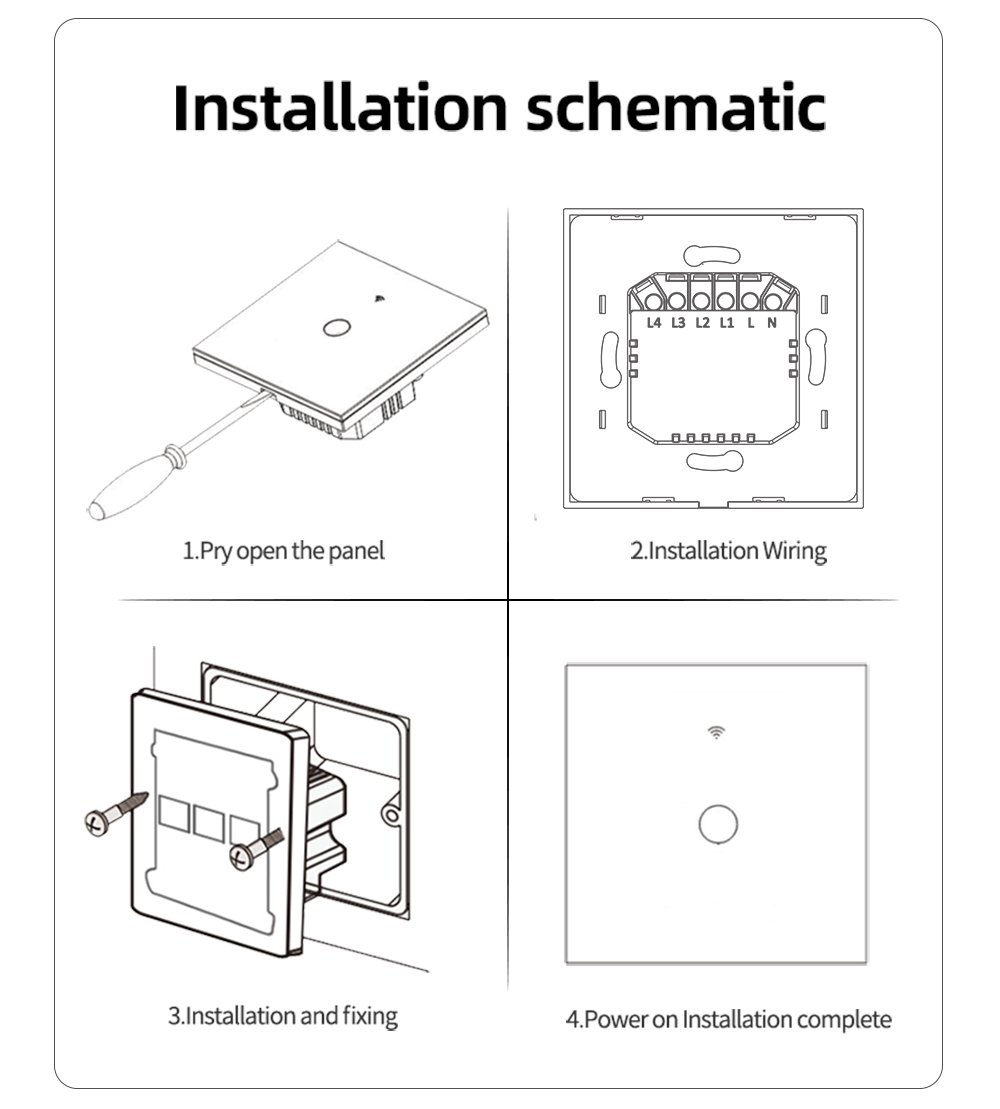

Installation & Wiring Notes

- Indoor use only, IP20, not for outdoor wet area.

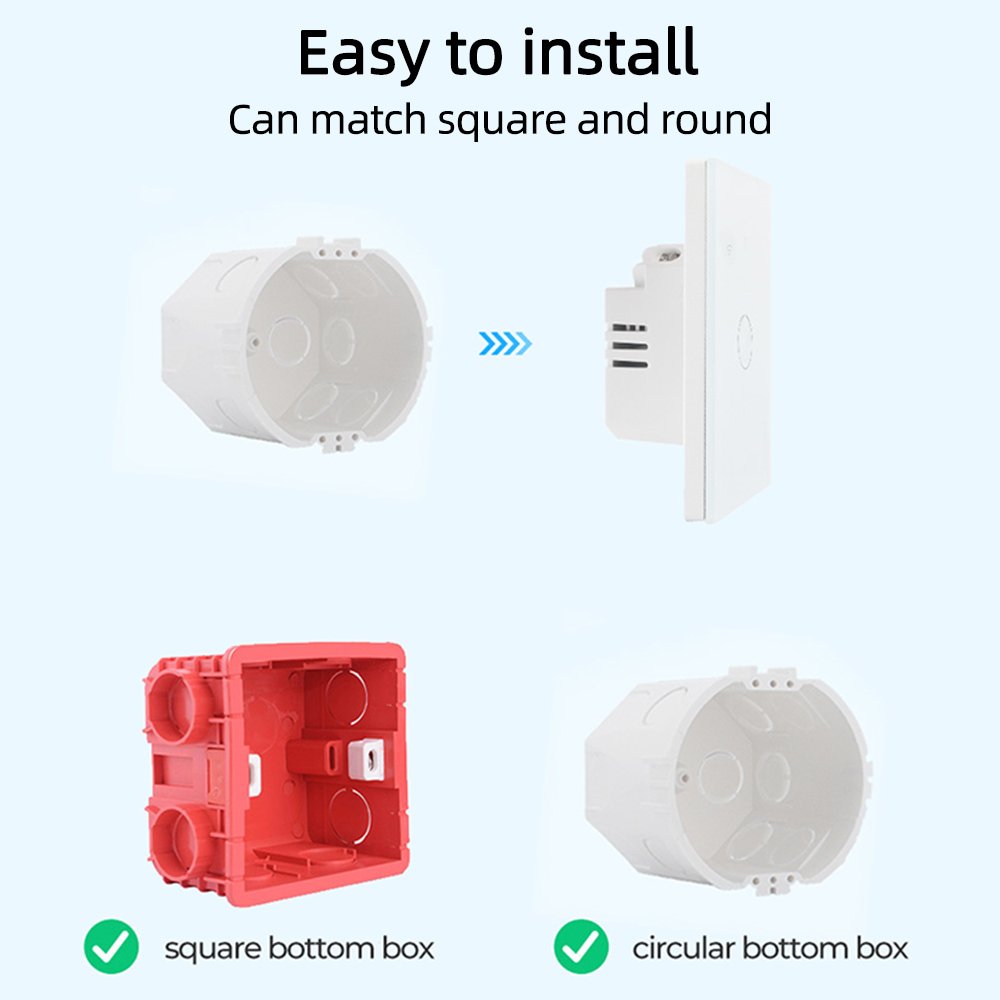

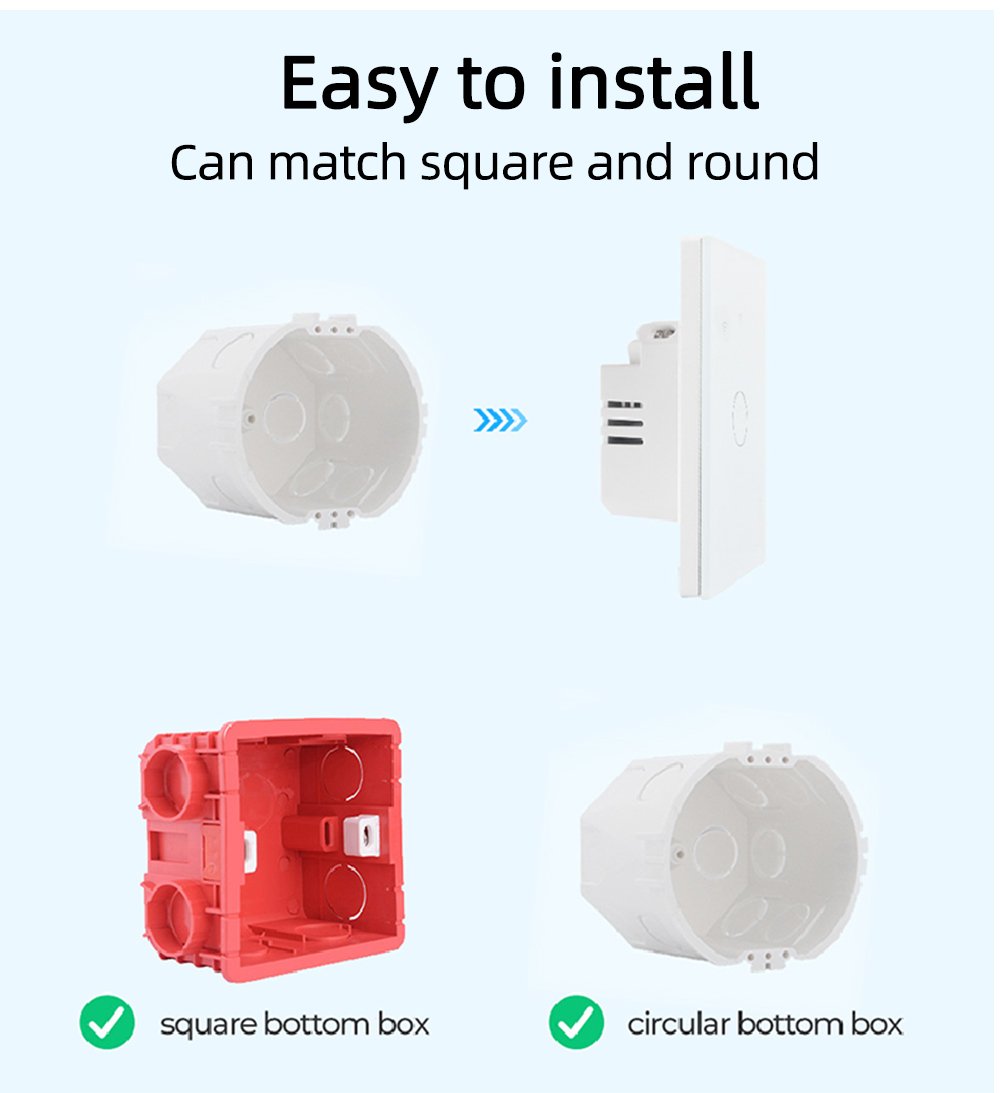

- Panel size follows EU 86mm standard, compatible with EU, UK and CN junction boxes.
- For single live wire installation, capacitor parallel connection on lamp terminal L1 is mandatory.
- Professional electrician installation is recommended.
